Date 02.10.2026 - 12:25:35

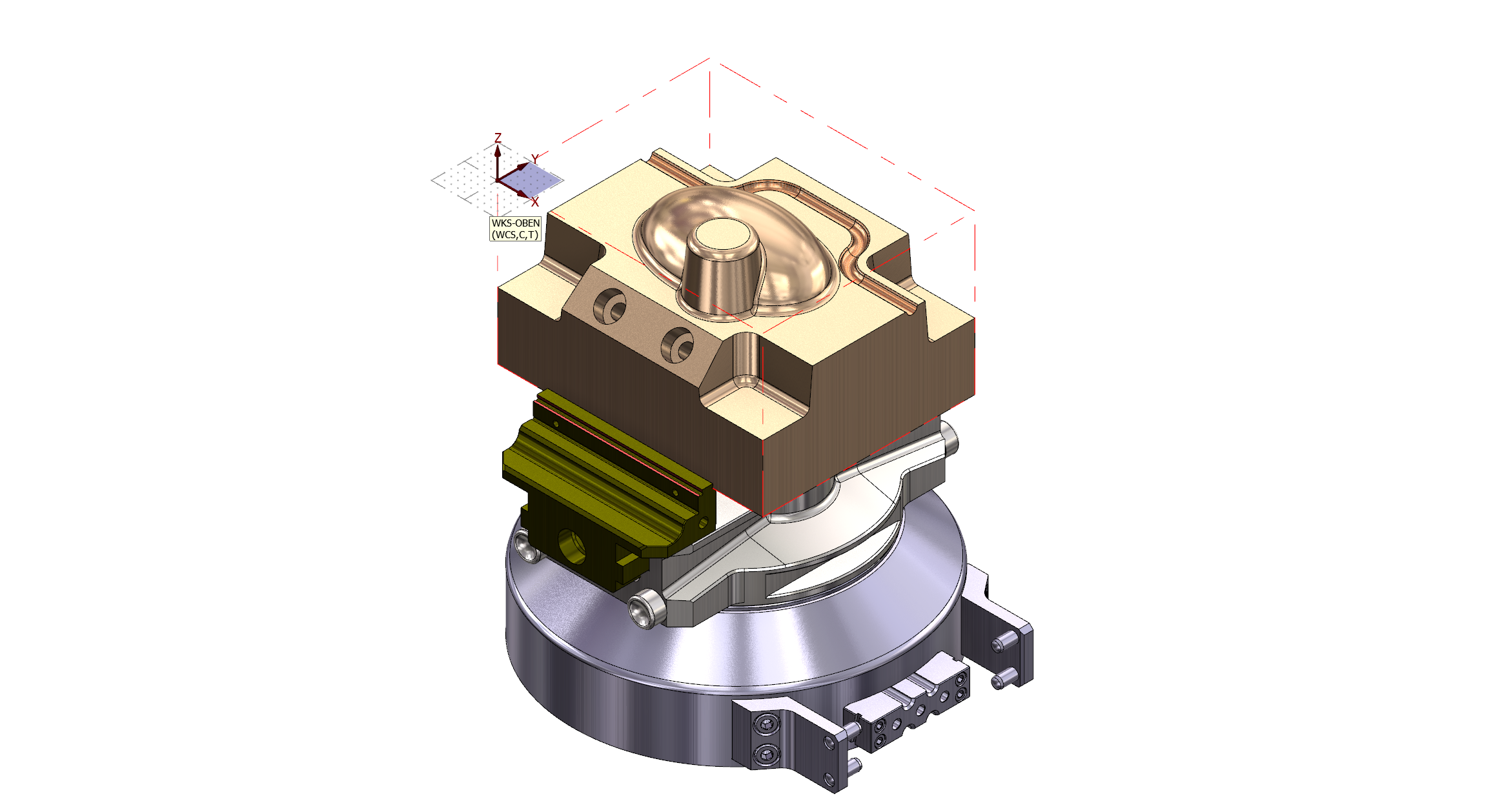

MC-Filename multiple-screenshots.mcam
Postprocessor MPFAN.PST
Material ALUMINUM mm - 2024
Stock X200.00 Y160.00 Z120.00
Programmer Alf
User name GMCCS
Computer name LAPTOP-A3A0R4IM
Machine MILL DEFAULT MM.MCAM-MMD
Machine group Machine Group-1
JavaScript Documentation
CSS Documentation
Comment

To view the applied CSS styles in any modern web browser, you can use the built-in Developer Tools.

Chrome/Edge/Firefox: Press F12 or Ctrl+Shift+I.

You can also right click an element and then inspect.

Operation type Tl BMP Tl # Tl type Tl diam. Tl corner rad Cutter comp Stock XY Stock Z Z-Min Cycle time

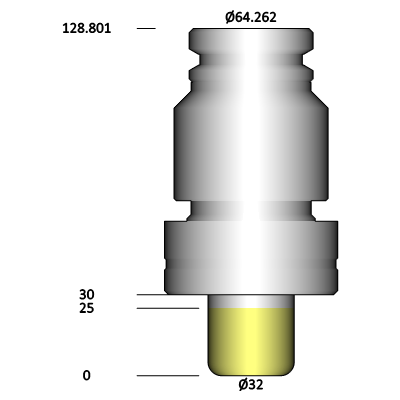

Facing 4 Bullnose 32.0 5.0 0.0 0.0 0.0 1:16:44

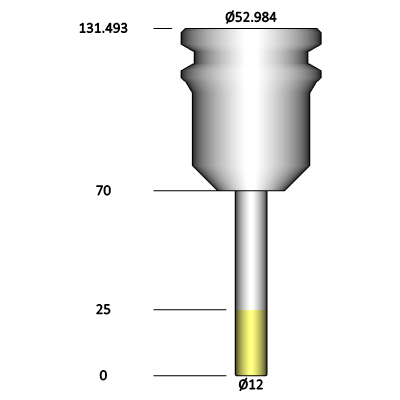

3D High Speed (Dynamic OptiRough) 1 Bullnose 12.0 0.5 0.35 0.35 -69.65 0:19:50
Stock model 0.0 0.0 0:00:00

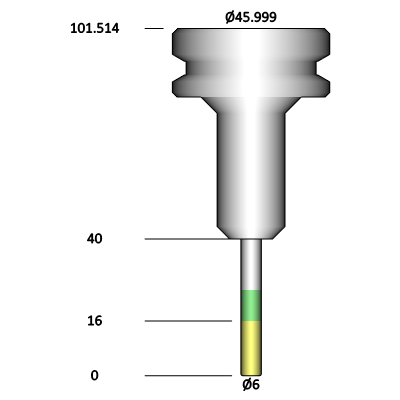

3D High Speed (Dynamic OptiRest) 2 Bullnose 6.0 0.5 0.35 0.35 -69.65 0:04:49
Stock model 0.0 0.0 0:00:00

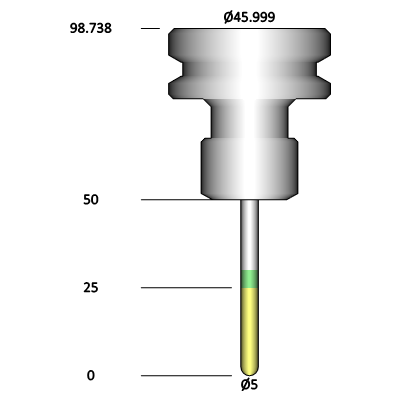

3D High Speed (Dynamic OptiRest) 3 Ball endmill 5.0 2.5 0.35 0.35 -45.032 0:36:50

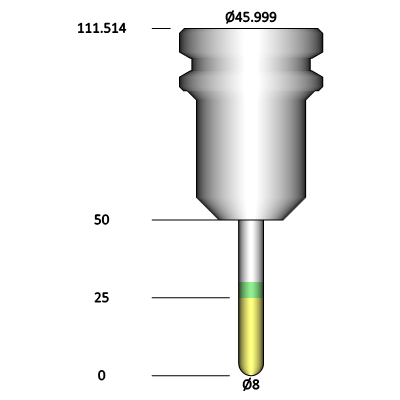

3D High Speed (Waterline) 5 Ball endmill 8.0 4.0 0.0 0.0 -69.722 3:49:22
3D High Speed (Raster) 5 Ball endmill 8.0 4.0 0.0 0.0 -70.0 7:16:30
3D High Speed (Blend) 3 Ball endmill 5.0 2.5 0.0 0.0 -43.995 0:46:19
14:10:25
