2023-12-20
GMCCS
Y:\support

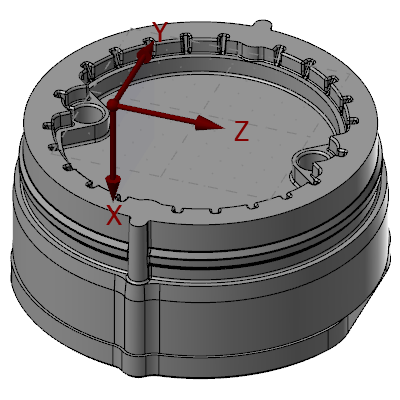

formkern
MyWorkpiece
Post for Ingersoll
Layerbezeichnung = Elektrodenname und Position
([name]-[position])
Layersatz = Technologie
([orbit], [1.Untermass], [2. Untermass], ... [n. Untermass])
el1-1
300, 0.2

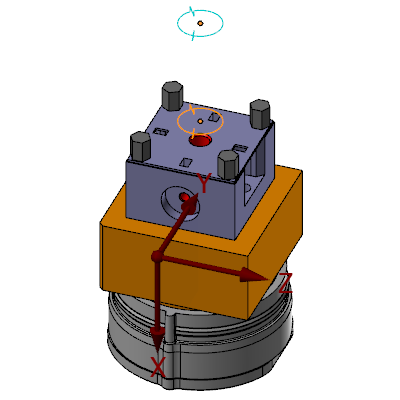

101
-130.00
0.00
20.00
0.00
82
#00cccc
-77.44
0.00
20.00
0.00
94
#ff9900
el2-1
300, 0.4, 0.2

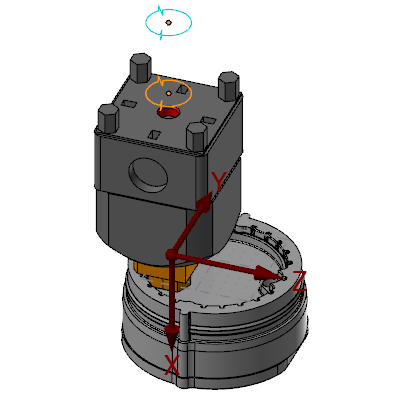

201
-130.00
-8.52
1.58
0.00
82
#00cccc
-92.25
-8.52
1.58
0.00
94
#ff9900
el2-2

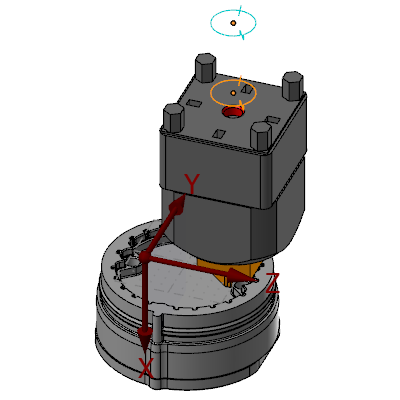

202
-130.00
8.52
38.42
180.00
82
#00cccc
-92.25
8.52
38.42
180.00
94
#ff9900
el2-3

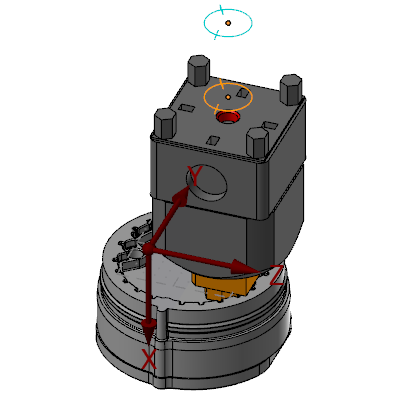

203
-130.00
-8.52
38.42
0.00
82
#00cccc
-92.25
-8.52
38.42
0.00
94
#ff9900
el2-4

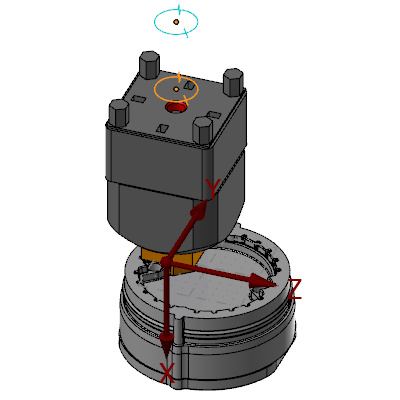

204
-130.00
8.52
1.58
180.00
82
#00cccc
-92.25
8.52
1.58
180.00
94
#ff9900
el3-1
300, 0.4, 0.2

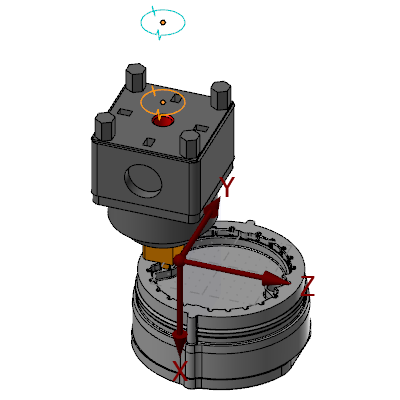

301
-130.00
0.00
-8.17
0.00
82
#00cccc
-85.76
0.00
-8.17
0.00
94
#ff9900

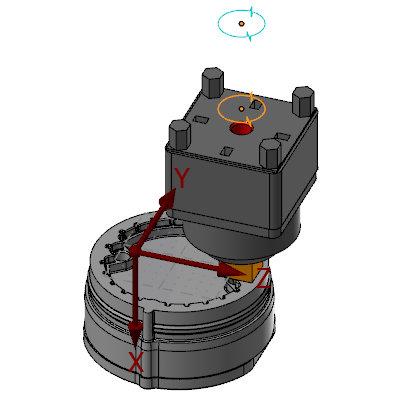

el3-2
302
-130.00
-0.00
48.17
180.00
82
#00cccc
-85.75
-0.00
48.17
180.00
94
#ff9900
el4-1
300, 0.4, 0.2

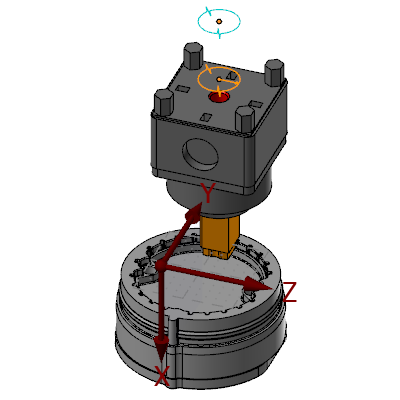

401
-130.00
25.48
20.00
0.00
82
#00cccc
-96.44
25.48
20.00
0.00
94
#ff9900

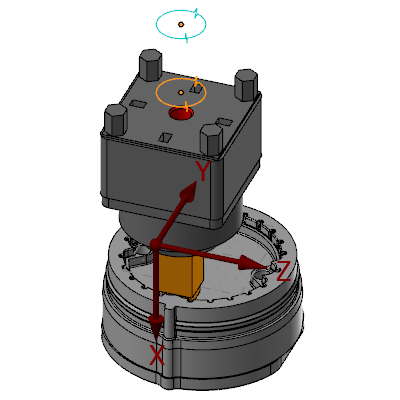

el4-2
402
-130.00
-25.48
20.00
180.00
82
#00cccc
-96.44
-25.48
20.00
180.00
94
#ff9900
