Date	11.02.2026 - 17:11:41
MC-Filename	sorted-tools.mcam
Postprocessor	TNC530i_NEW.pst
Material	ALUMINUM mm - 2024

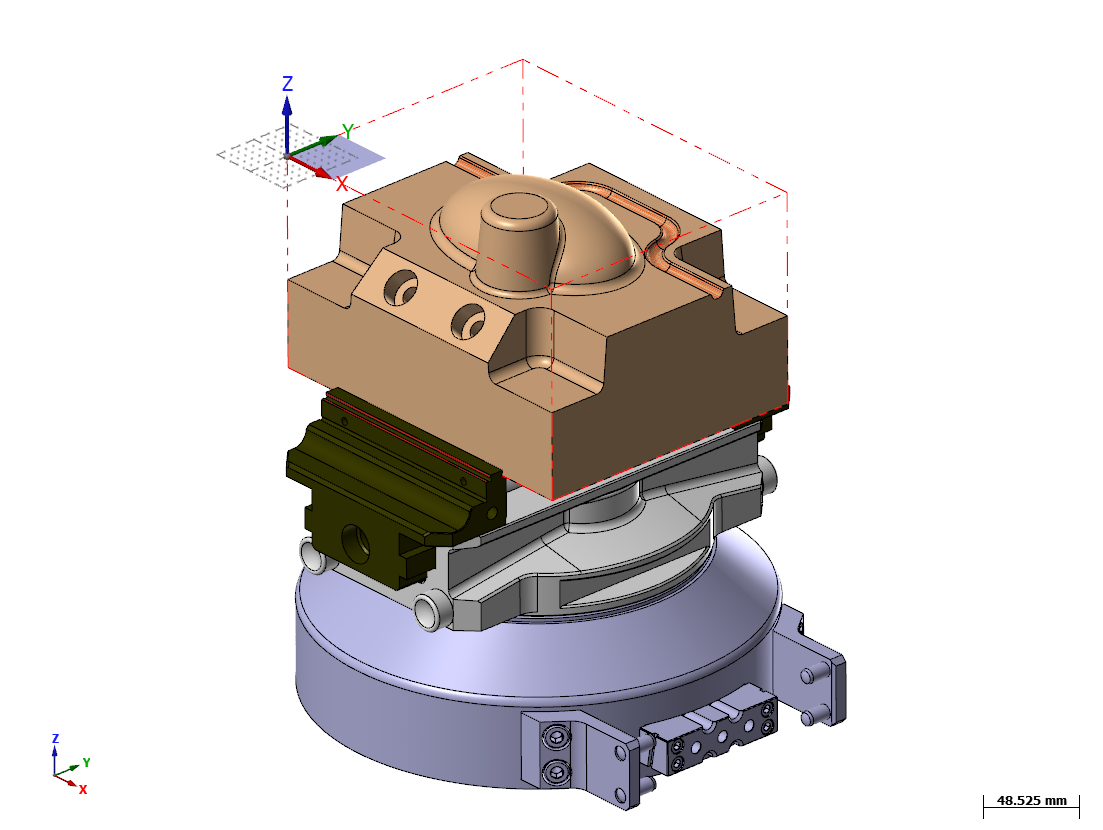

Stock	X200.00 Y160.00 Z120.00
Programmer	Alf
User name	GMCCS
Computer name	LAPTOP-A3A0R4IM
Machine	TNC530i_new.mcam-mmd
Machine group	Machine Group-1

Comment

This template is designed to transform a standard CNC setup sheet into a consolidated, sorted Tool Table. It identifies unique tools, aggregates their total cycle times, determines their maximum physical depth (z-Min), and provides an interactive UI for sorting and image inspection.


Tl #	Tl BMP	Operation type	Comment	Cutter comp	Tl type	Tl diam.	Tl corner rad	Tl length	Tl Cutlength	Stock XY	Stock Z	Z-Min	Cycle time
4		Planen			Radienfräser	32.0	5.0	30.0	25.0	0.0	0.0	0.0	1:16:44

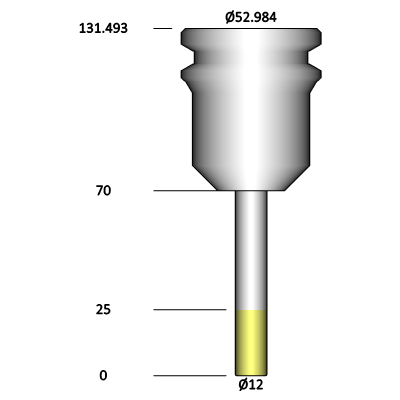

1		3D HSC (3D Dynamisches Schruppen)			Radienfräser	12.0	0.5	70.0	25.0	0.35	0.35	-69.65	0:19:51
		Rohteil	Nach dem Schruppen							0.0	0.0		0:00:00

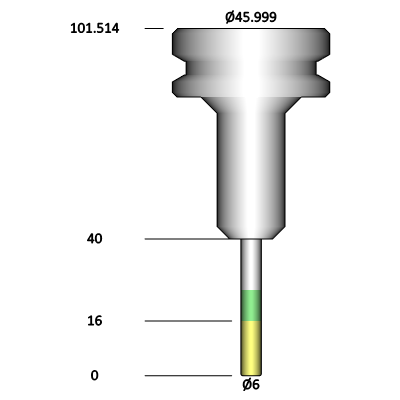

2		3D HSC (Dynamisches OptiRest)			Radienfräser	6.0	0.5	40.0	16.0	0.35	0.35	-69.65	0:04:50
		Rohteil	Nach dem Restmaterial							0.0	0.0		0:00:00
3		3D HSC (Dynamisches OptiRest)			Kugelfräser	5.0	2.5	50.0	25.0	0.35	0.35	-45.032	0:36:51

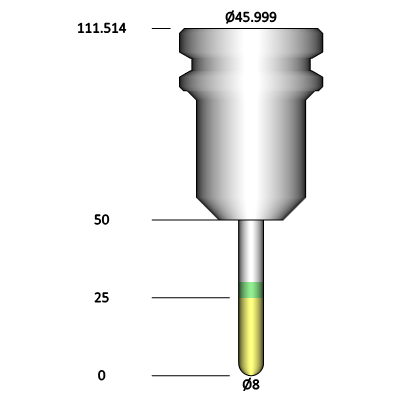

5		3D HSC (Z-Konstant)			Kugelfräser	8.0	4.0	50.0	25.0	0.0	0.0	-69.722	3:49:24
5		3D HSC (Parallel)			Kugelfräser	8.0	4.0	50.0	25.0	0.0	0.0	-70.0	7:16:54
3		3D HSC (Blenden)			Kugelfräser	5.0	2.5	50.0	25.0	0.0	0.0	-43.995	0:46:21
14:10:55


Tl #	Tl BMP	Operation type	Comment	Cutter comp	Tl type	Tl diam.	Tl corner rad	Tl length	Tl Cutlength	Stock XY	Stock Z	Z-Min	Cycle time
1		3D HSC (3D Dynamisches Schruppen)			Radienfräser	12.0	0.5	70.0	25.0	0.35	0.35	-69.65	00:19:51
2		3D HSC (Dynamisches OptiRest)			Radienfräser	6.0	0.5	40.0	16.0	0.35	0.35	-69.65	00:04:50
3		3D HSC (Dynamisches OptiRest)			Kugelfräser	5.0	2.5	50.0	25.0	0.35	0.35	-45.032	01:23:12
4		Planen			Radienfräser	32.0	5.0	30.0	25.0	0.0	0.0	0.0	01:16:44
5		3D HSC (Parallel)			Kugelfräser	8.0	4.0	50.0	25.0	0.0	0.0	-70.0	11:06:18
14:10:55
